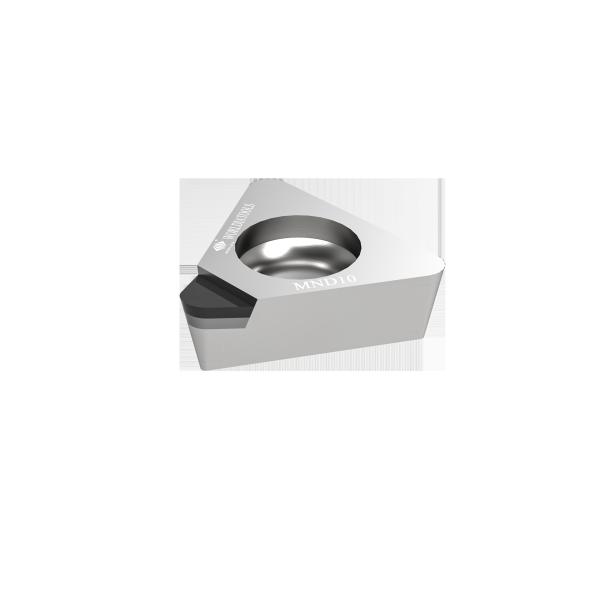

TPGT110302 Poly Crystalline Diamond Turning Inserts For Bronze Alloys

Brand Name : ManaNova

Model Number : TPGT 110302

Certification : ISO9001,14001.18001, RoHS

Place of Origin : Beijing, China

MOQ : 2 Piece

Price : $20-40/ Piece

Payment Terms : L/C, T/T, D/A, D/P

Supply Ability : In stock

Delivery Time : 3-4days

Packaging Details : 2 PCs/Blue rose box

Tips : 1N

Coating : Uncoated

Product Brand : WORLDIA

Product Family : ManaNova

Name : PCD standard insert

Usage : Turning tools

Material : PCD+Carbide

PCD Grade : MND10

Application : High-precision machining of non-ferrous materials

Contact Now

TPGT 110302 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials


Description:


"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.
ManaNova is a concept that stands in the view of end-users, we strictly choose PCD and PCBN materials
to provide the universal cutting effect.



Main products:
PCBN insert: 7materials/ 1 type, universal for hardened steel, cast iron, ductile iron, and powder metallurgy.
Polycrystalline cubic boron nitride(CBN) is a material with an excellent hot hardness that can be used at very high
cutting speeds. It also exhibits good toughness and thermal shock resistance.


PCD insert is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
PCD Turning Inserts can be used in many fields including the car industry, energy equipment, and the wood and stone
industry.


Advantages:

·High quality

·Low cost

·Factory direct supply


Service:
· Online store service
· Local distributor support
· Technical support

Application:

MND10 Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc.

PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP).
PCD with flood coolant can also be used in titanium super-finishing applications.
·Aluminum and aluminum alloys
·Copper, brass, and bronze alloys
·Zinc and magnesium alloys
·Carbon Fiber
·Epoxy resins
·Plastics
·Fiberglass composites
·Graphite composites


Specification:

Angle Dimensions Grade
ANSI Code ISO Code Tips IC
mm		 S
mm		 R
mm		 Φd
mm		 LE
mm		 MND
10
TPGT 22.50.5 TPGT 110302 1N 6.35 3.18 0.2 3.3 2.5 √
TPGT 22.51 TPGT 110304 1N 6.35 3.18 0.4 3.3 2.5 √
TPGT 22.52 TPGT 110308 1N 6.35 3.18 0.8 3.3 2.5 √
TPGT 330.5 TPGT 160402 1N 9.525 4.76 0.2 4.4 2.5 √
TPGT 331 TPGT 160404 1N 9.525 4.76 0.2 4.4 2.5 √

Feed rate recommendation
Nose radius(mm) Ra um
0.2 0.4 0.8 1.6 3.2 6.4
Feed Rate f (mm/rev)≤
0.2 0.028 0.040 0.057 0.080 0.113 0.160
0.4 0.040 0.057 0.080 0.113 0.160 0.226
0.8 0.057 0.080 0.113 0.160 0.226 0.320
1.2 0.069 0.098 0.139 0.196 0.277 0.392
1.6 0.080 0.113 0.160 0.226 0.320 0.453
2.4 0.098 0.139 0.196 0.277 0.392 0.554
